Flat Die Poultry Feed Pellet Mill

The flat die granulator is mainly suitable for coarse fiber granulation. It has a wide range of applications in the production of biomass forming fuel and livestock granule feed, as well as organic fertilizer and compound fertilizer granulation by using crop straw. It can also be applied to low temperature granulation such as biological bacterial fertilizer, organic fertilizer and compound fertilizer. The flat mold granulator is the first choice for breeding farms and professional households to reduce the cost of breeding and improve economic efficiency. The production capacity is 100-500 kg per hour, and the small set consists of a pulverizer, a mixer, a screw conveyor, a regulator, a flat die granulator, a rotary screen and a cooler.
Share With :
Product description
Machine Functions
Product features
parameter
Inquiry
Product description

The flat die granulator has a simple structure, wide adaptability, small floor space and low noise. Powdered feed and grass powder can be granulated without the addition of liquid. Therefore, the moisture content of the pellet feed is basically the moisture content of the material before granulation. More conducive to storage. Flat Die Poultry Feed Pellet Mill machine Mainly suitable for medium-and small-scale farming professional households and other processing of various livestock and poultry and aquatic pellet feed can reduce the cost of aquaculture.

The granules made by the flat die granule machine have high hardness, smooth surface and sufficient internal ripening degree, which can improve the digestion and absorption of nutrients, and can kill common therapeutic microorganisms and parasites. It is suitable for feeding rabbits, fish, ducks, pigeons and experiments. Animals can achieve higher economic benefits than mixed powdered feeds.
The particle size can be adjusted by changing the mold.


There are two types of flat die feed pellet machine, Die-Rotating type pellet machine and Roller-Rotating type pellet machine.
Die-Rotating type machine mainly used for animal feed pellet, like materials is grain.
Roller-Rotating type pellet machine mainly apply to wood biomass pellet, materials is wood branch etc. but if Customers materials have grass, also use Roller-Rotating pellet machine.

Diesel, electric motors and petrol engines can be customized according to customer requirements.


                   petrol engine                                     diesel engine                                         electric motor


The difference between the flat die machine and the ring touch particle machine

VS

Flat Die Poultry Feed Pellet Mill
Machine Functions

Flat Die Poultry Feed Pellet Mill
01
Flat Die Pellet Mill works on a vertical design, using gravity as the main force for feeding the material through the machine.
Flat Die Poultry Feed Pellet Mill
02

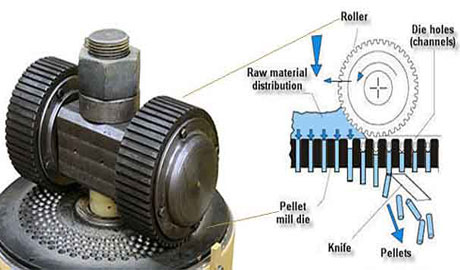

Flat Die Pellet Mill have a horizontal die, with a series of rollers sitting on the die. When material goes in from the top feed inlet, it is compressed between the rollers and die.
Flat Die Poultry Feed Pellet Mill
03
Die-Rotating type machine mainly used for animal feed pellet, like materials is grain. if raw materials have grass, also use Roller-Rotating pellet machine.
Flat Die Poultry Feed Pellet Mill
04
Roller-Rotating type pellet machine mainly apply to wood biomass pellet, materials is wood branch etc.
Product features

1. Simple structure.
2. Easy to clean and maintain.
3. Spare parts are also easy to change, less cost for rollers and dies.
4. Simple operating, just 1 or 2 workers are OK.
5. The sort of pelletizer is easier to clean than the ring die pellet mill.
6. Be able to change new die and rollers faster to save time to produce pellets.
7. Small and light weight, which can be used in home,small farm,and light industrial.
8. Visibility to viewing the material during pelleting is the best way to fix problems.
Product parameter

Model Capacity Power Voltage Pellet Size Weight Dimension
LM-KLJ120 60-100kg/h 3KW 380V/50hz 4-8mm 80kg 750*310*620mm
Customized
LM-KLJ150 150-220kg/h 4KW 380V/50hz 4-8mm 95kg 770*340*680mm
Customized
LM-KLJ200 200-300kg/h 7.5KW 380V/50hz 4-8mm 190kg 1000*430*950mm
Customized
LM-KLJ230 300-400kg/h 11KW 380V/50hz 4-8mm 290kg 1150*500*970mm
Customized
LM-KLJ260 400-600kg/h 15KW 380V/50hz 4-8mm 330kg 1200*500*1030mm
Customized
LM-KLJ300 600-800kg/h 22KW 380V/50hz 4-8mm 440kg 1320*530*1070mm
Customized
