Waterdrop Feed Hammer Mill

Water drop type hammer mill or grinder, because it shape looks like a drop water,it's body made by carbon steel thinkness 6-10mm,inside including two metal sieve/screener, hammer can be 30pcs,48pcs,60pcs,90pcs,etc. The water-drop type grinding equipment has frequency control of motor speed and electromagnetic coupling for choice, that the speed of feed could be adjusted.The color and voltage of this machine can be customized. This water drop type hammer mill is a big size grinder machine, It is often used in feed production lines and it also can be used stand-alone.
Share With :
Product description
Machine Functions
Product features
parameter
Inquiry
Product description

Hammer crushing principle
The hammer mill uses a physical impact type of pulverizing method to operate at a high speed, so that it moves relative to the fixed pinion around it and the fixed ring gear around it. The material passes through the high-strength collision and material of the hammer in the hammer mill. A mutual impact can be obtained to obtain a pulverized material. The material that has been pulverized in the hammer mill is then subjected to high-speed rotation and is filtered from the sieve hole into the prepared bag by the centrifugal force. In the working process of the hammer mill, the worker puts the material into the crusher through the feed port, and then the hammer mill crushes the material and pulverizes it at a high speed. While the pulverizer hits the material, the material is further subjected to the friction and pulverization of the various components in the pulverizer. Under such circumstances, the raw material can be further pulverized. In the process of pulverizing the raw material by the pulverizer, particles of different sizes may appear, because the particle size is different, small particles are filtered out, and large particles remain in the pulverizer for further pulverization. Under such circumstances, an air circulation layer is formed in the pulverizer. The existence of this circulation layer affects the pulverization efficiency of the pulverizer and greatly increases the energy consumed by the pulverizer.
Effect of the shape of the crushing chamber on the performance of the hammer mill
Through the understanding of the pulverization theory of the pulverizer and according to scientific research, in the process of pulverizing the raw materials, it is necessary to ensure the pulverization efficiency of the pulverizer, and to grasp the degree of comminution, and it is not possible to have excessive pulverization or If the smashing is not complete, then we need to change the shape of the crushing chamber through continuous reform and innovation. In fact, the change in the shape of the pulverization chamber is a change in the shape of the sifter, thereby reducing the formation of the air circulation layer in the pulverization chamber. In this way, the pulverization efficiency of the pulverizer can be comprehensively improved. In recent years, through continuous efforts and innovations of technicians at home and abroad, in order to improve the pulverization efficiency of the drunken machine, a drip-shaped and elliptical pulverization chamber was invented, which improved the pulverization efficiency of the pulverizer to some extent.
The drop type hammer mill refers to a pulverized shape of a water drop type. At the beginning, the shape of the crushing chamber of the hammer mill was round. After a series of reforms, the circular shape was changed into a water droplet type, which changed the bending degree of the sieve and hindered the formation of the circulation layer to some extent. This greatly improves the pulverization efficiency of the pulverizer and also facilitates the discharge of the raw material into the pulverization chamber. Research practice shows that the drop-type hammer mill has an efficiency of at least 15% higher than that of the conventional hammer mill.

Waterdrop Feed Hammer Mill
Machine Functions

Waterdrop Feed Hammer Mill
01
This hammer mill used in the crushing stage of feed pellet line, make the raw material crush into powder.
Waterdrop Feed Hammer Mill
02
Mainly used to crush grain feed (corn,soybean,etc) and crush rice husk,corn cob, straw pieces,and wood chips,etc.
Waterdrop Feed Hammer Mill
03

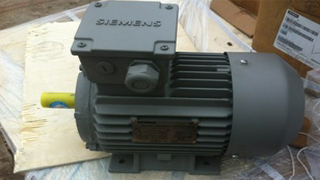

The motor of this machine is SKS and Simens. Video technical online support, Engineers available to service machinery overseas.
Waterdrop Feed Hammer Mill
04
The degree of bending of the sieve sheet hinders the formation of the circulation layer to a certain extent, and improves the pulverization efficiency of the pulverizer.
Product features

1.The waterdrop feed hammer mill is human designed, which is easy to control and has lower noise.
2.Rational design of crushing chamber, increase the screening rate.
3.Easy to realize two functions of coarse and fine grinding.The grinding efficiency is increased.
4.The coarse or fine grinding can be realized by adjusting the gap between the hammer and screen, thus one machine can be used as two.
5.The shifting automation operating door allows easy overhaul and easy hammer sheet replacement.Operation humanistic and convenient.
Product parameter

SPECIFICATIONS HAMMER MILL
ITEM NAME LM-32C LM-33C LM-34C LM-35C
Motor power(kw) 22/30 30/37 55/75 90/110
Production Capacity 1-2t/h 3-5t/h 4-10t/h 5-15t/h
Hammer Quantity 30pcs 48pcs 70pcs 90pcs
Screen Quantity Screen 2PCS, high yield, high grinding efficiency
Screen Hole Diameter 1,5,2,4,6,8,10,12mm
Rotor Diameter(mm) 560 560 600 660
Crushing Chamber 320 400 600 800
 Width (mm)
Mainshaft Speed(rpm) 2970 2970 2970 2970
Hammer of Line Speed(m/s) 103.8 98 100 105.8
Bearing Number 2312 2314 2214 2218
Screen Size(mm) 840*270*2 712*395*2 850*618*2 850*795*2
Anti-vibration Pad 4 4 4 6
Carbon Steel Shell Thinkness 6mm 6mm 10mm 10mm
Diamension(L*W*H) 1410*720*970mm 1550*860*1130mm 1900*900*1250mm 2500*1100*1350mm
Weight(Ton) 0.8 1 1.5 2
