China Diesel Engine Floating Fish Feed Pellet Making Machine Wet Type Fish Feed Extruder

Product description

Machine Functions

Product features

parameter

Inquiry

Product description

Fish feed making machine is used for processing for dogs and cats (pet food), birds, piglets, frogs, sinking and floating aquatic feeds for fish. Which is high and new technical program as to catch the developing pet food market. CE certificate best price floating aquarium fish feed pellet food making machine mainly use maize, fish powder, meat powder and some food additive as main raw material, through mixing, extruding, roasting, flavoring to get the final puffed pet food.
This line is fully automatic, high capacity and with different of shapes. It can produce such as cat food, dog food, fish food, bird food and so on.

Machine Functions

Can be divided into 2 types: small Dry plant and Large wet type plant. In accordance with what extruder you choose.

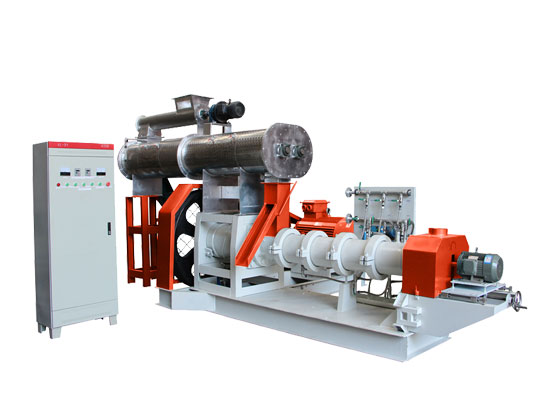

Wet type: super automation control and high production efficiency, it's the best choice for medium and big sized feed mill and breeding farms. This processing line can produce various kinds of pellets for different varities of fishes inclusing halibut pellets, catfish pellets, catcarp pellet, trout pellets, hemp pellets, csl pellets, etc.

Dry type: it has the same application with wet extrusion plant (manufacturing fish feed in commercial aquaculture, providing balanced nutrition for farmed fish.)but with smller production capacity(180-200kg/h). therefore it is mostly favored by owners of small scale fish farms tha have lower requiment on the prcessing technique technique and output.

Low capacity machine can be customize the motor, like Diesel engines,Electric engine.

Product features

Do not need vapour, lower the cost :In the case of the same feed, the price of self-made feed is 30%-60% lower than the market price.

Wear-resisting screw and sleeve:High temperature resistant alloy steel material treated by hardening, has advantages of abrasion resistance and long life.

Feed floating time more than 24hours:With this machine, the inflated feed particles are tidy and smooth, keep floating over the water for more than 24 hours.

Product parameter

Floating fish feed pellet machine by Motor Type
Model	Capacity	Main power	Feeding	Screw	Cutting	Dimension	Weight
	(T/H)	(Kw)	power	diameter	power	(mm)	(kg)
			(kw)	(mm)	(kw)
LM-DGP40-C	0.03-0.04	3.0*2	0.4	40	0.4	150014001250	280
single phase	0.03-0.04	3.0*2	0.4	40	0.4	150014001250	280
LM-DGP40-C	0.03-0.04	5.5	0.4	40	0.4	14001030730	240
three phase	0.03-0.04	5.5	0.4	40	0.4	14001030730	240
LM-DGP50-C	0.06-0.08	11	0.4	50	0.4	147011001250	320
LM-DGP60-C	0.10-0.15	15	0.4	60	0.4	147011201250	350
LM-DGP70-B	0.18-0.2	18.5	0.4	70	0.4	165014001300	580
LM-DGP80-B	0.2-0.3	22	0.6	80	0.6	180014501300	695
LM-DGP90-B	0.3-0.4	37	0.6	90	0.8	210014501350	950
LM-DGP120-B	0.5-0.6	55	1.1	120	1.5	240019501600	1700
LM-DGP135-B	0.7-0.8	75	1.1	133	2.2	255020501650	1900
LM-DGP160-B	1.0-1.2	90	1.5	155	3	310026501800	3200
LM-DGP200-B	1.8-2.0	132	2.2	195	3.0-4.0	310028501950	3800

Floating fish feed pellet machine by Diesel Type
Model	Horse power	Feeding Power	Cutting power	Capacity (KG/H)	Weight(KG)	Dimension(MM)
LM-DGP40-C	12HP	0.4KW	0.4KW	30-40	360	140012501200
LM-DGP50-C	17HP	0.4KW	0.4KW	60-80	540	178014701250
LM-DGP60-C	22HP	0.4KW	0.4KW	100-150	590	178014701250
LM-DGP70-B	28HP	0.4KW	0.4KW	180-200	740	205014501300
LM-DGP80-B	32-35HP	0.6KW	0.6KW	200-300	850	215015001300
LM-DGP90-B	50HP	0.8KW	0.6KW	300-400	1200	220020001350
